Temperature Switch with 24V DC Rated Voltage, Suitable for Battery Packs

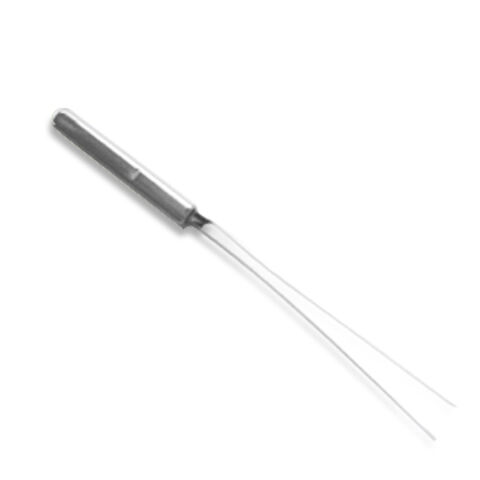

Creep action bi-metal thermal protector for battery packs
Range of action temperature: -20 to 200°C with tolerance of±5°C
Reset temperature: a range of 2°C below action temperature
Used condition: -20 to 200°C
Rated voltage: 24V DC
Rated current: 2 and 3A
Small size: 5.3 x 2.4 x 15.8mm
Certifications: UL, TUV and RoHS
| Model Number | JRMC creep action thermal fuse | ||||
|---|---|---|---|---|---|
| Brand Name | JiaLing | ||||
| origin | China | ||||
| Small Orders | Accepted | ||||
Key Specifications/ Special Features:
Creep action bi-metal thermal protector for battery packs
Range of action temperature: -20 to 200°C with tolerance of±5°C
Reset temperature: a range of 2°C below action temperature
Used condition: -20 to 200°C
Rated voltage: 24V DC
Rated current: 2 and 3A
Small size: 5.3 x 2.4 x 15.8mm
Certifications: UL, TUV and RoHS
